GLII Module

model number	Imax (A)	Vmax (V)	ΔTmax (℃)	Qmax (W)	ΔTmax (℃)	Qmax (W)	External Dimensions (mm)
			Th=27℃		Th=50℃		Lc	Wc	Lh	Wh	H
FPH1-3102NC	2.0	3.8	70.0	4.4	77.0	5.0	15.0		15.0		4.70
FPH1-7102NC		8.8		10.2		11.2	20.0		20.0
FPH1-12702AC		15.7		18.2		19.5	30.0		30.0		4.75
FPH1-3103NC	3.0	3.8	70.0	7.3	77.0	8.0	15.0		15.0		3.80
FPH1-7103NC		8.8		16.6		18.0	20.0		20.0
FPH1-12703AC		15.7		29.8		32.5	30.0		30.0		3.85
FPH1-3104NC	3.9	3.8	70.0	8.6	77.0	9.5	15.0		15.0		3.60
FPH1-7104NC		8.8		18.7		20.9	20.0		20.0
FPH1-12704AC		15.7		35.2		39.0	30.0		30.0		3.65
FPH1-3106NC	6.0	3.8	70.0	13.0	77.0	14.3	15.0		15.0		3.10
FPH1-7106NC		8.8		29.7		32.7	20.0		20.0
FPH1-12706AC		15.7		53.1		59.1	30.0		30.0		3.15
FPH1-1707NC	6.0	2.1	70.0	7.4	77.0	8.2	15.0		15.0		3.90
FPH1-3107NC		3.8		13.6		14.9	20.0		20.0
FPH1-7107AC		8.8		31.1		34.2	30.0		30.0		3.95
FPH1-12707AC		15.7		55.6		61.0	40.0		40.0
FPH1-1708NC	8.5	2.1	70.0	10.3	77.0	11.3	15.0		15.0		3.40
FPH1-3108NC		3.8		18.8		20.8	20.0		20.0
FPH1-7108AC		8.8		43.1		48.0	30.0		30.0		3.45
FPH1-12708AC		15.7		77.1		85.0	40.0		40.0

GLII Module / 2-Tier Cascade Module

model number	Imax (A)	Vmax (V)	ΔTmax (℃)	Qmax (W)	ΔTmax (℃)	Qmax (W)	External Dimensions (mm)
			Th=27℃		Th=50⊥		Lc	Wc	Lh	Wh	H
FPK2-19808NC	8.5	16.1	85.0	51.6	95.0	58.0	40.0		40.0		7.05

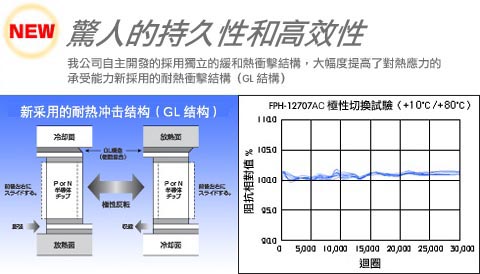

		<<<Test Report of GLII Module

GL模組通用規格
1. 最大耐熱溫度：150℃（保證使用溫度範圍：—40~100℃）
2. 允許的最大壓縮載荷：1MPa
3. 引線規格：PVC UL 規格品
4. 耐濕密封：KE347（信越有機矽類）或者以近似產品密封模組的面。

Standard Module

model number	Imax (A)	Vmax (V)	ΔTmax (℃)	Qmax (W)	External Dimensions (mm)
			Th=27℃		L	W	H
TEC1-1703	3.5	2.1	68	3.9	15	15	4.7
TEC1-3103		3.8		7.0	20	20
TEC1-3503		4.2		8.0	30	15
TEC1-7103		8.6		16.0		30
TEC1-12703		15.4		29.0	40	40
TEC1-1704	4.0	2.1	68	4.2	15	15	4.7
TEC1-3104		3.8		7.5	20	20
TEC1-3504		4.2		8.4	30	15
TEC1-7104		8.6		17.0		30
TEC1-12704		15.4		32.0	40	40
TEC1-1705	5.0	2.1	68	5.5	15	15	4.1
TEC1-3105		3.8		10.0	20	20
TEC1-3505		4.2		11.0	30	15
TEC1-7105		8.6		23.0		30
TEC1-12705		15.4		41.0	40	40
TEC1-1706	6.0	2.1	68	7.1	15	15	4.0
TEC1-3106		3.8		13.0	20	20
TEC1-3506		4.2		14.5	30	15
TEC1-7106		8.6		29.0		30
TEC1-12706		15.4		53.0	40	40
TEC1-1707	7.0	2.1	68	7.5	15	15	3.7
TEC1-3107		3.8		13.6	20	20
TEC1-3507		4.2		15.4	30	15
TEC1-7107		8.6		31.0		30
TEC1-12707		15.4		55.0	40	40
TEC1-1708	8.5	2.1	68	10.0	15	15	3.8
TEC1-3108		3.8		18.0	20	20
TEC1-3508		4.2		20.0	30	15
TEC1-7108		8.6		42.0		30
TEC1-12708		15.4		75.0	40	40
TEC1-12712	12.0	15.4	68	110.0	40	40	3.7
TEC1-12715	15.0			130.0	50	50	3.5
TEC1-6308	8.5	7.6		37.4	40	20	3.8
TEC1-19908		24.1		118.0		40	3.5
TEC1-19913	13.0			200.0	50	50
TES1-3102	2.0	3.8	66	3.7	15	15	5.1
TES1-7102		8.6		8.5	20	20
TES1-12702		15.4		15.2	30	30
TES1-3103	3.0	3.8	66	6.5	15	15	3.8
TES1-7103		8.6		15.0	20	20
TES1-12703		15.4		27.0	30	30
TES1-3104	4.0	3.8	66	8.1	15	15	3.6
TES1-7104		8.6		18.7	20	20
TES1-12704		15.4		33.4	30	30
TES1-3106	6.0	3.8	66	12.2	15	15	3.3
TES1-7106		8.6		27.9	20	20
TES1-12706		15.4		50.5	30	30
TES1-14304	4.0	17.3	66	40	40	40	3.7
TEC1-6025	25.8	6.3	68	125.0	Lh=48	Wh=48	5.5
					Lc=40	Wc=40

Standard Module / 2-Tier Cascade Module

model number	Imax (A)	Vmax (V)	ΔTmax (℃)	Qmax (W)	External Dimensions (mm)
			Th=27℃		Lc	Wc	Lh	Wh	H
TEC2-19808	8.5	14.9	85.0	50.0	40		40		6.8

Standard Module / appearance

TEC1-12703/TEC1-12704/TEC1-12705/TEC1-12706/TEC1-12707/TEC1-12708/TEC1-12712/TEC1-12715		TEC1-7103/TEC1-7104/TEC1-7105/TEC1-7106/TEC1-7107/TEC1-7108		TEC1-3503/TEC1-3504/TEC1-3505/TEC1-3506/TEC1-3507/TEC1-3508
TEC1-3103/TEC1-3104/TEC1-3105/TEC1-3106/TEC1-3107/TEC1-3108		TEC1-1703/TEC1-1704/TEC1-1705/TEC1-1706/TEC1-1707/TEC1-1708		TEC1-6308
TEC2-19808		TEC1-19908		TEC1-19913
TES1-3102/TES1-3103/TES1-3104/TES1-3106		TES1-7102/TES1-7103/TES1-7104/TES1-7106		TES1-12702/TES1-12703/TES1-12704/TES1-12706
TES1-14303		TEC1-6025
